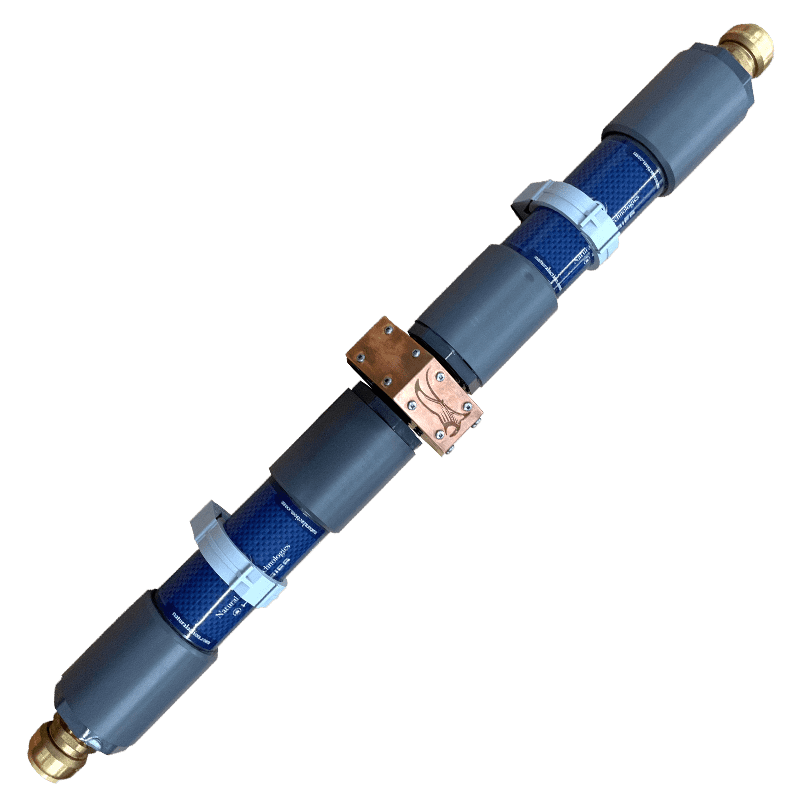

• Model: MagnaRay MR-24
• Fitting Size: 1" NPTF (National Pipe Thread Female)
• Installation: Main water line (point-of-entry)
• Maintenance Required: None
• Filter Replacements: None needed
• Operation Method: Passive, non-electric
• Applications: Drinking, cooking, bathing, laundry, gardening, pets
• Manufactured Origin: [Information not provided in original]
• Warranty: [Information not provided in original]

Active Components:

• Paramagnetic materials
• Precision-engineered turbulence chambers
• Geometric flow forms
• Enhanced charging module

Housing Components:

• Durable exterior casing
• 1" NPTF threaded fittings
• Installation hardware

Specifications

• Pressure Limit: 100 PSI
• Temperature Limit: 140F
• Materials: NSF-61 PVC parts, Food Grade HDPE, proprietary Di-Electric media
• Fittings: 1" NPT female
• Total Install Length: Approximately 30"
• Weight: 8lbs

Misuse or improper installation may void your warranty or cause subsequent water damage at your own liability.

Disclaimer

* Structured Water Units come with a 90-Day Money Back Guarantee and Lifetime Warranty provided by the manufacturer. This is separate from Doc of Detox's own return policy — we offer a 30-Day return on unused items.

For any warranty claims under the manufacturer's guarantee, please contact Doc of Detox and we'll handle it on your behalf.

Disclaimer

These statements have not been evaluated by the Food and Drug Administration. This product is not intended to diagnose, treat, cure, or prevent any disease. The MagnaRay MR-24 is designed to restructure water and does not filter or remove contaminants. If you have specific water quality concerns, additional filtration equipment should be considered. Consult with a healthcare professional before making changes to your water consumption if you have medical conditions or concerns.

The MagnaRay MR-24 restructures your home's water supply through biomimicry—replicating the natural processes that occur when water flows through streams and waterfalls. This restructuring organizes water molecules into more coherent, geometrically stable formations that interact more efficiently with biological systems. Users typically report improved hydration, better tasting water, and more comfortable bathing experiences. The structured water produced enhances the effectiveness of household cleaning, supports plant vitality in gardens, and creates a more harmonious water environment throughout your home. The system works without chemicals, salt, electricity, or filter replacements, making it an environmentally conscious and low-maintenance solution for whole-home water enhancement.

The MagnaRay MR-24 installs directly into your main water line, ensuring all water entering your home receives structured treatment. Installation requires connection to your 1" main water line, typically near where water enters your home. Professional installation by a licensed plumber is recommended. No maintenance or filter replacements are required as the unit works through passive mechanical means rather than filtration. Consult with a water treatment professional to determine the optimal installation location for your specific plumbing configuration.

Preparation: The Home unit is fitted with a 1-inch NPT fitting. If your pipe is a different size than your unit, make sure your plumber installs a reducer/adapter.

Mounting: Your unit may be installed in either direction, vertically or horizontally. Ensure the piping is supported, deburred, and clean. The MR-24 comes with wall mount clamps due to extra weight and mounted 15 inches apart.

Location: It is recommended to install it inline after the water meter, after any filtration and before the water heater. Do not expose the unit to direct sunlight, as this could shorten its service life and potentially void the warranty. Use heat tape to wrap if exposed.

Fittings: Install adapter fittings as necessary for the installation. We recommend MEGATAPE BRAND Grey Kevlar PTFE tape, wrapped 3-5 times, with a small amount of non-hardening sealer applied over the top of the tape. (We prefer MEGALOC BRAND) Both are widely available. DO NOT OVERTIGHTEN! If there are any leaks, undo the fittings and reapply the procedure. When properly done, it does not require more than 1/2 to 3/4 turn of tightening after hand-tightening.
